Millers Falls Company - Millers Falls and
Greenfield, MA
|
|
|
|
|
|
|
|
|
Anatomy of the Millers
Falls Hand Drill No. 2 - 1903
by Wiktor Kuc |
4 of 14
 |
|
|
|

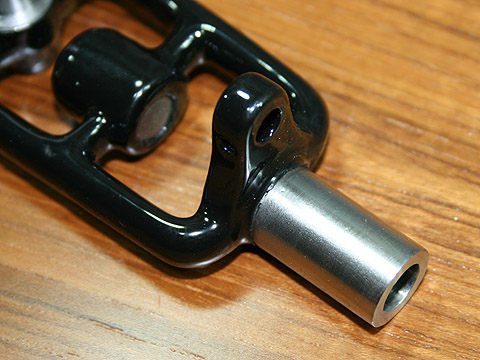

The spindle housing
view from the gear side. The "Friction Roll" mounting
bracket is visible here.

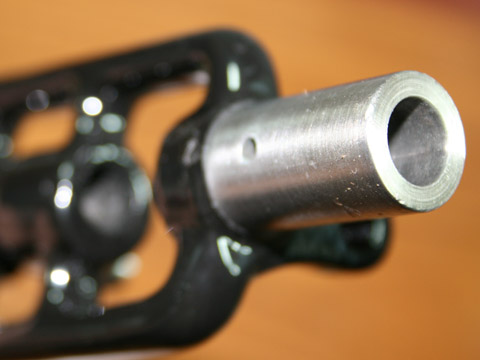

The inside diameter of
the spindle housing is 3/8 inch and will take a spindle of that
diameter.

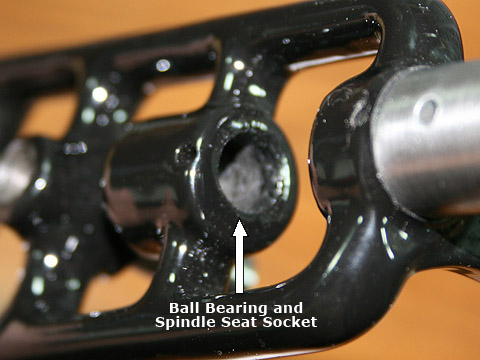

This is the seat
socket for a spindle. It will house the trust ball bearing
on which the end of the spindle with rest.

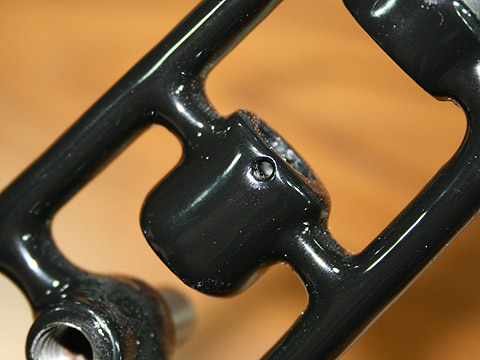

The seat
socket has provision for injecting a lubricant.
|
|
| |
