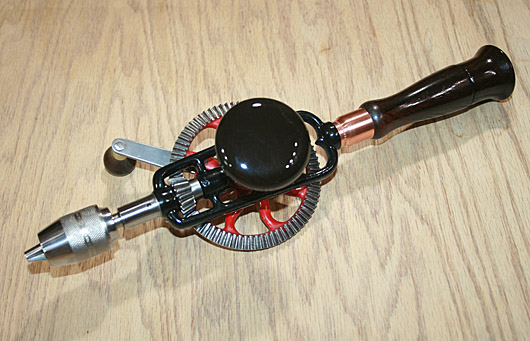

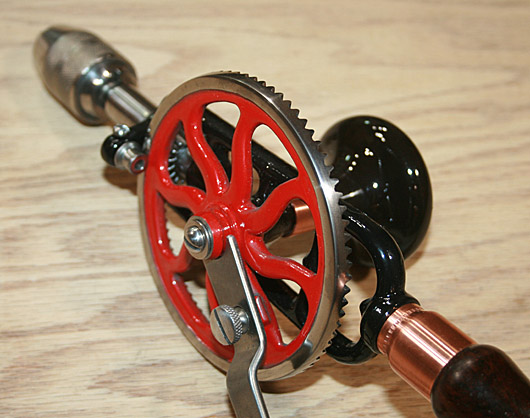

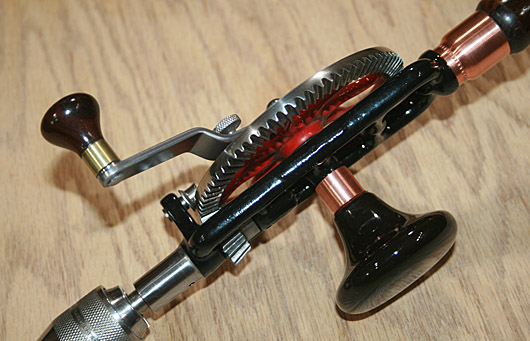

This is very rare example of a drill dated to 1906.

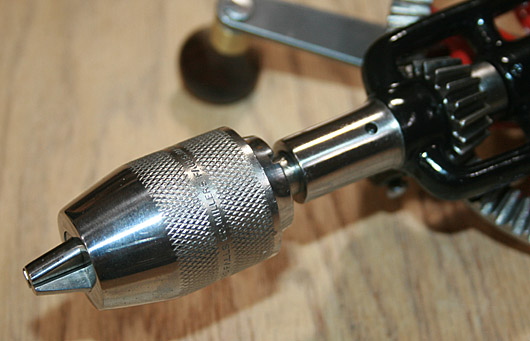

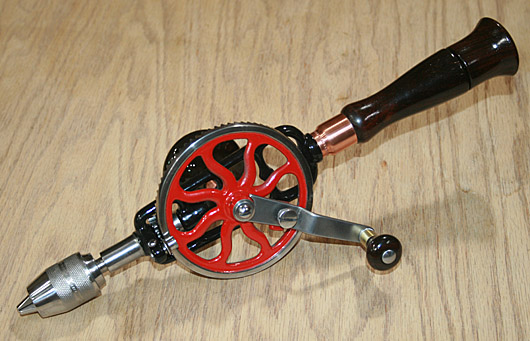

This is a No. 2 drill equipped with a
chuck based on McCoy's spring-less chuck adjustable from
0 to 17/64 inch.

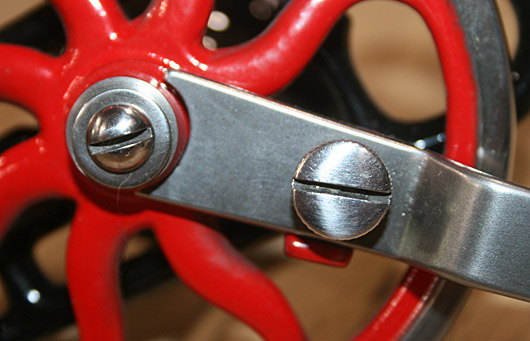

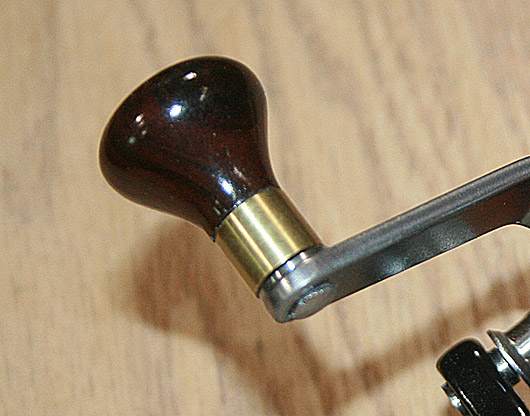

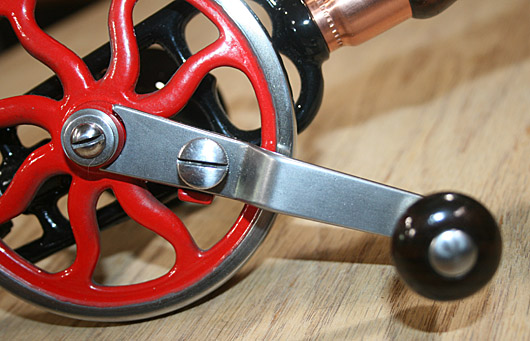

The drill has no markings on the crank plate and the

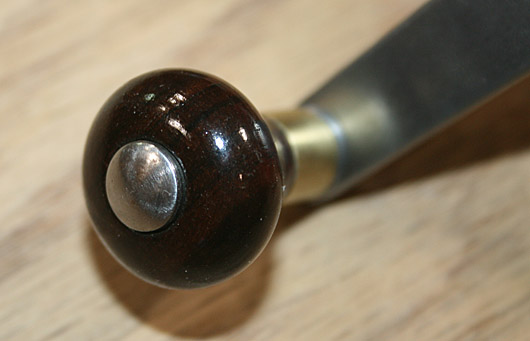

crank handle is still a small "chef's cap" shape, used
on early models. Only after four years - 1910 - the
crank plate was stamped with a "Star" mark and text. The
handle was also replaced with an elongated shape.

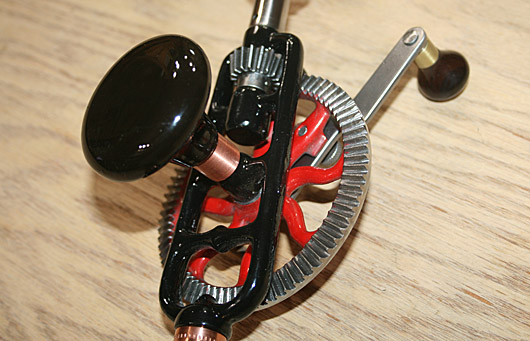

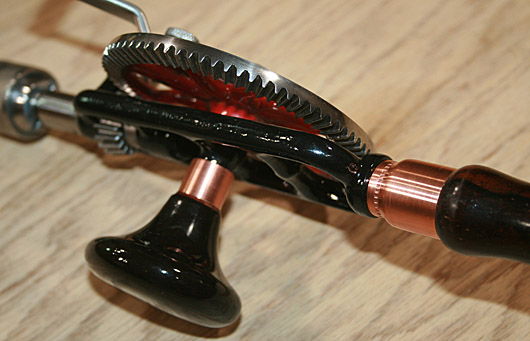

The side handle is a detachable, mushroom-shaped, used
for the first time on No. 2 drills. It replaced a
"egg-shaped" side handle used on previous models.
Millers
Falls describes this drill as:

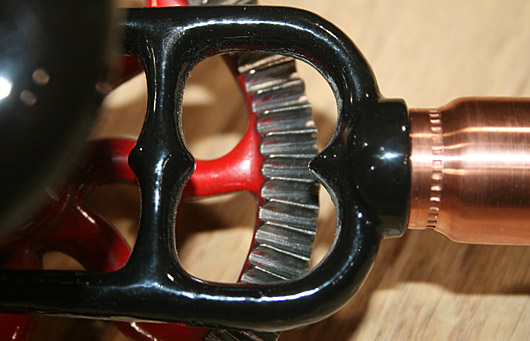

Rare tropical wood; malleable iron, black enameled

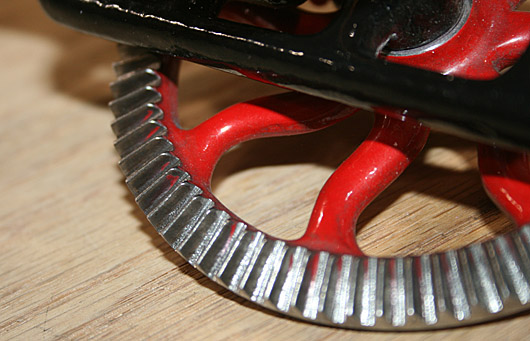

frame; large gear painted red; other metal parts
nickeled.
Hollow End Handle, with screw cap, shaped so tool may be
used as a breast drill, and spare bits. Removable side

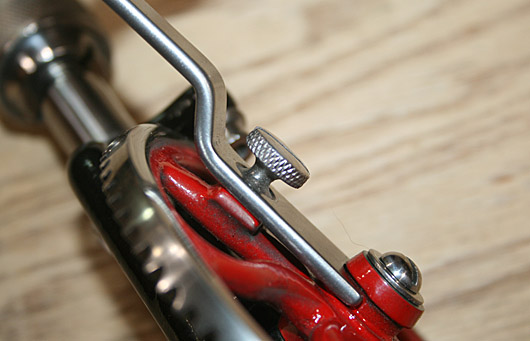

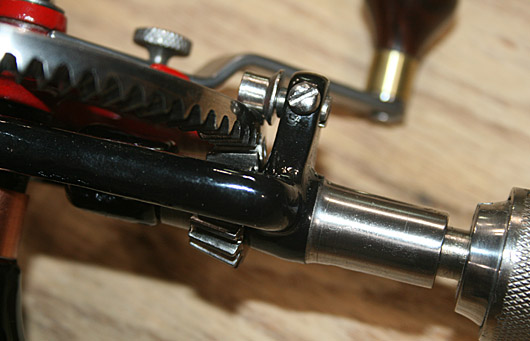

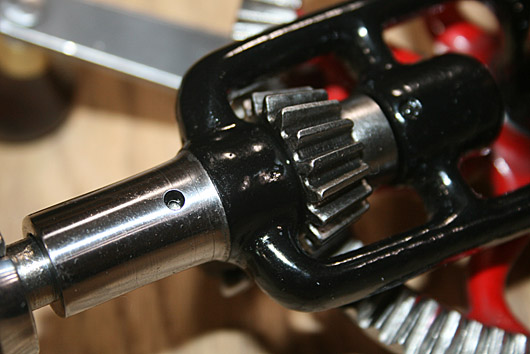

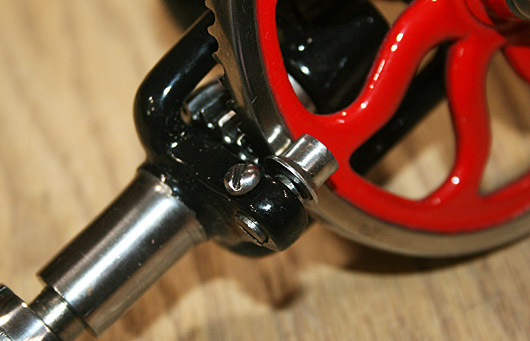

grip handle. Cut Gears with adjustable friction roll to
equalize bearing. Pinion of Steel, Ball Thrust Bearing.
|
|
Price: $280.00
Item #: 207-No2-1906-01
SOLD!

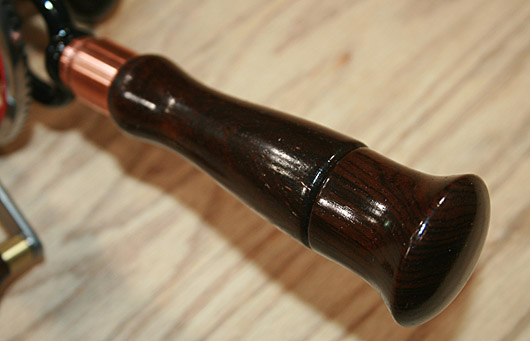

This is nice, early hand drill with Cocobolo main and crank handles,
finished with Tru-oil.
Smooth operating drill.

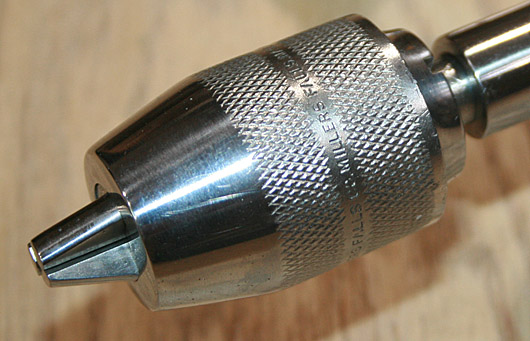

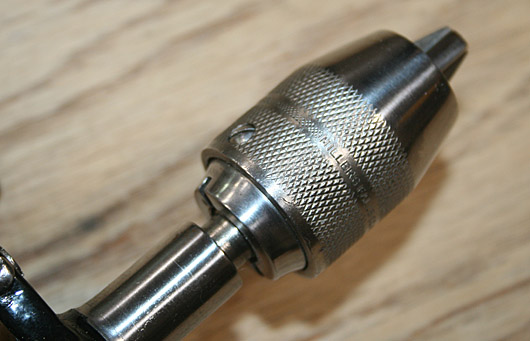

Identifying markings are place on the chuck and include chuck's
patent date and text. It reads: "Millers Falls Co., Millers Falls,
Mass. Pat. Sept. 20, 1896."

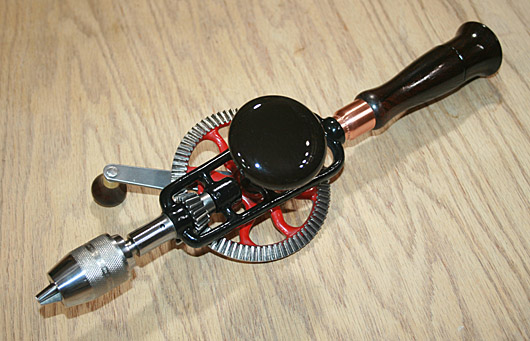

The side, "mushroom" shaped handle is a replacement. The
original handle was in such a bad shape that it didn't qualify for
repair.
