This release went into production in 1938 and lasted until
1957, when 2A version was introduced. It established
itself as one of the best and stable models.

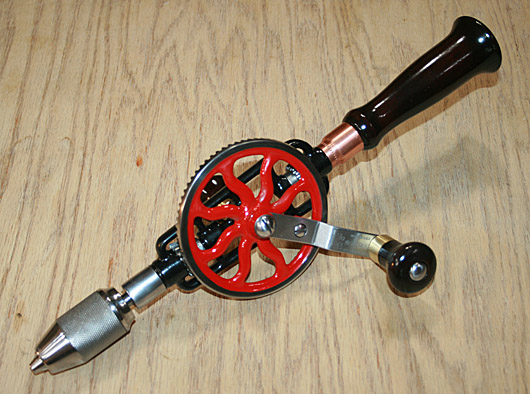

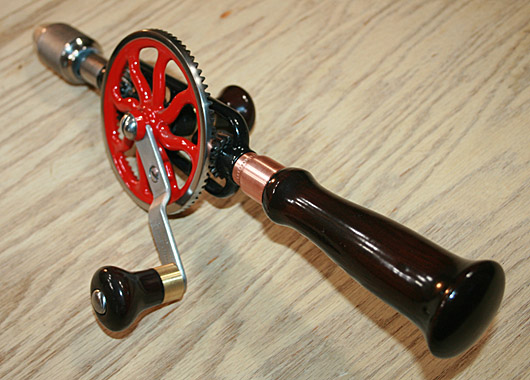

Millers Falls catalog describes this drill as:

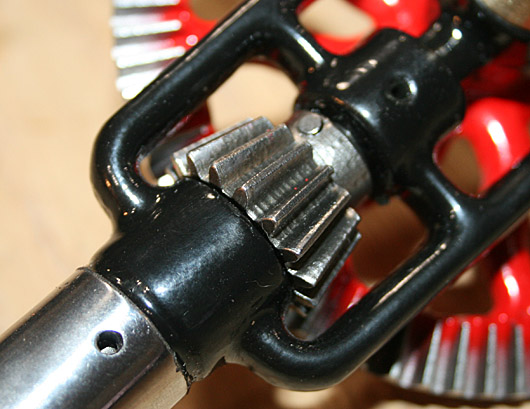

Single speed hand drill with two

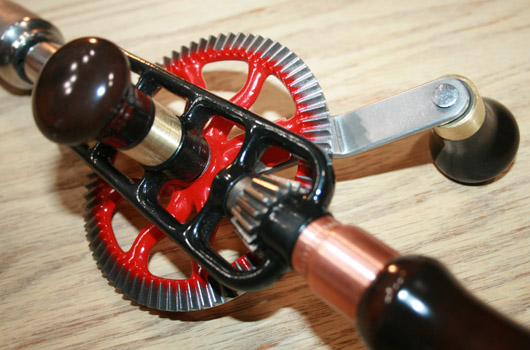

pinions. Malleable iron frame is enameled black. Drive

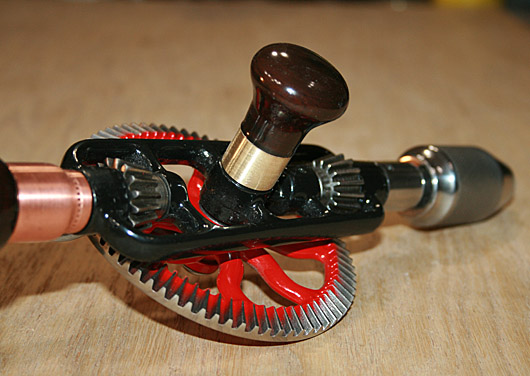

gear is painted red. Domestic Hardwood main handle. "Chef's cap" side handle.
Ball thrust bearing on spindle.

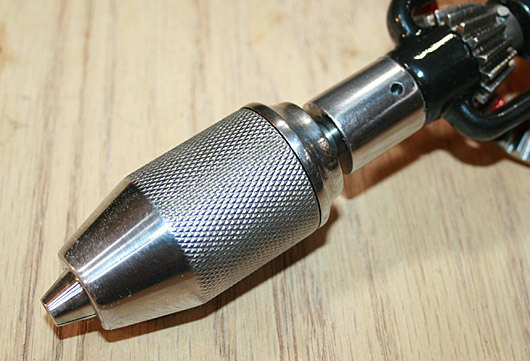

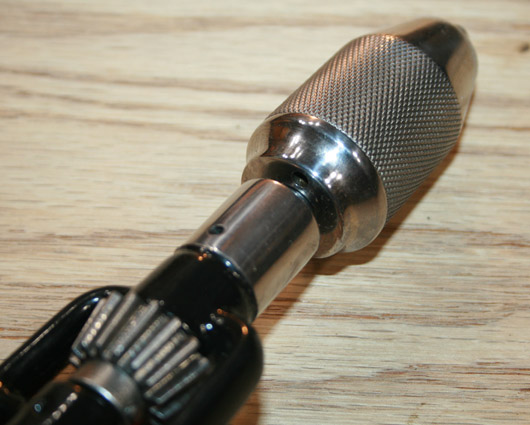

Three-jaw, spring type
chuck adjustable from 0 to 3/8 inch. Bright parts nickel

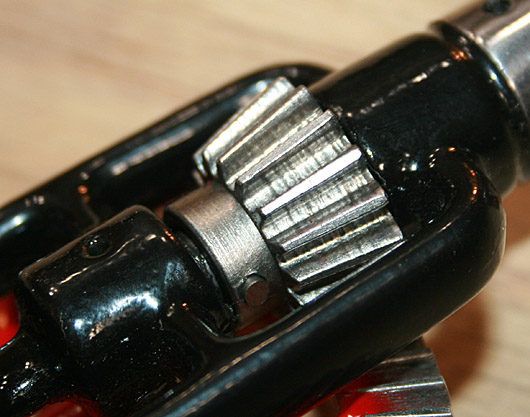

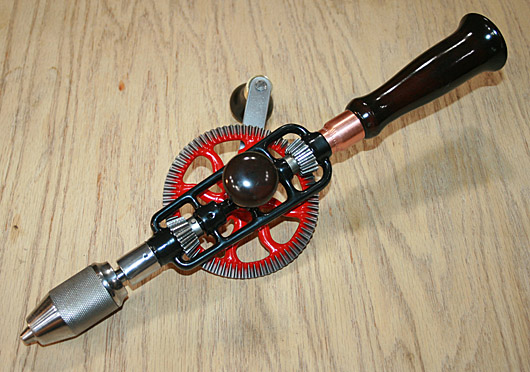

plated. This is the first year - 1938 - when second pinion
was introduced. Length is 14 1/2 inch. Weight is 2 1/2
lbs.

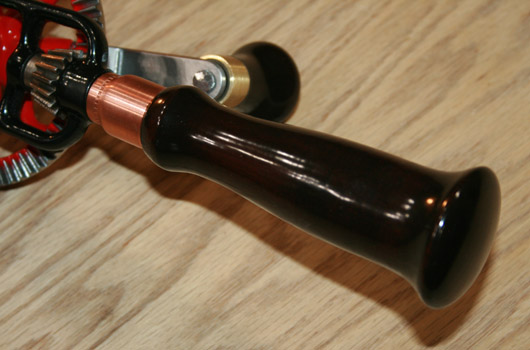

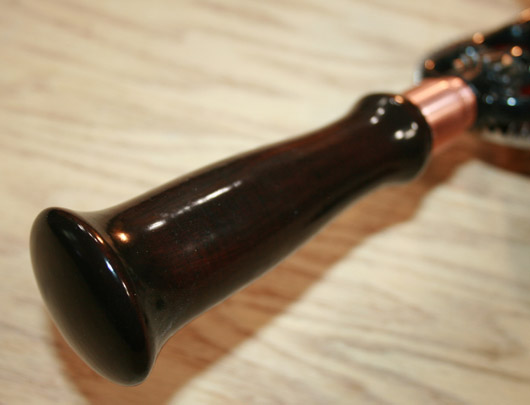

Main and crank handles are in hardwood, stained and
lacquered.
