Millers Falls Company - Millers Falls and Greenfield, MA



   Patent Bracket-saw Frame by Henry L. Pratt 1 of 3

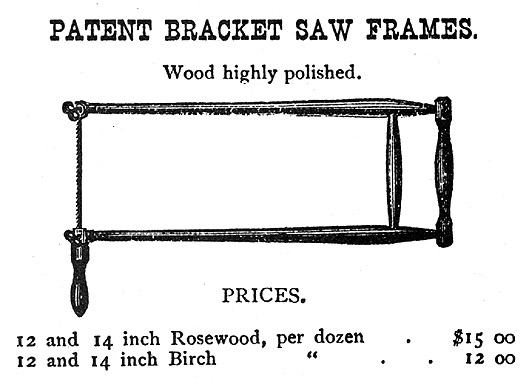

In 1878 catalog Millers Falls offered two Patented Bracket Saw Frames. One was made in wood and was offered in two varieties; Rosewood and Birch. Wood was highly polished.

The frames were produced in two sizes of frame clearance: 12 and 14 inches. The prices varied and depended of wood used for construction. Rosewood frame was more expensive, at $15.00 per dozen. The birch frame was a little cheaper - at $12.00 per dozen.

The frames were produced up to 1903 and appear in the Millers Falls Catalog "B", 1903.

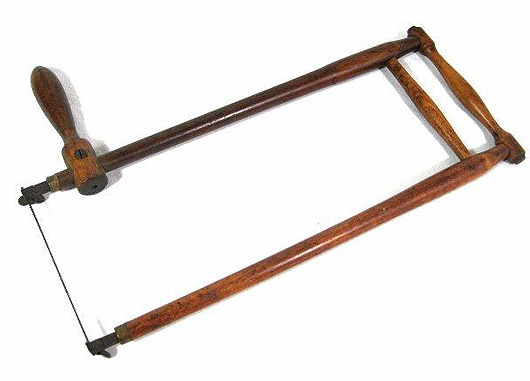

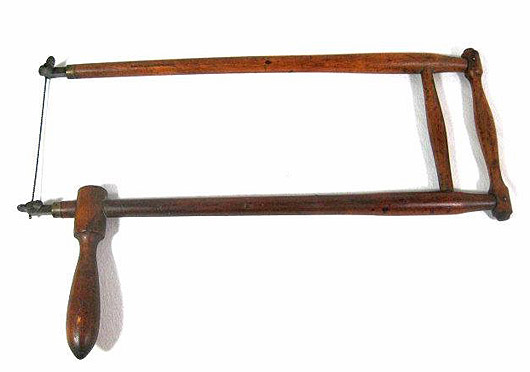

Here is what it looks like, made in Birch.

It was based on patent awarded to Henry Lee Pratt on June 8, 1875 and assigned a No. 8,381.

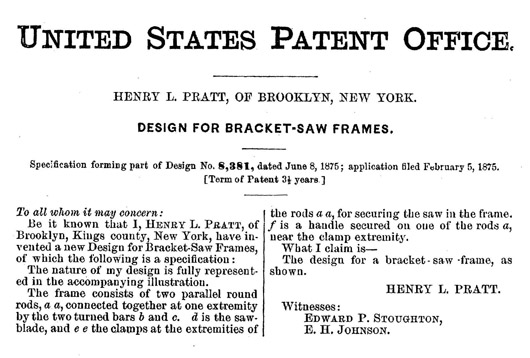

HENRY L. PRATT, OF BROOKLYN, NEW YORK

DESIGN FOR BRACKET-SAW FRAMES

Specification forming part of Design No. 8,381, dated June 8, 1875;

Application filed February 5, 1875. [Term of Patent 3-1/2 years]

To all whom it may concern:

Be it known that I, HENRY L. PRATT, of Brooklyn, King County, New York, have invented a new Design for Bracket-Saw Frames, of which the following is a specification:

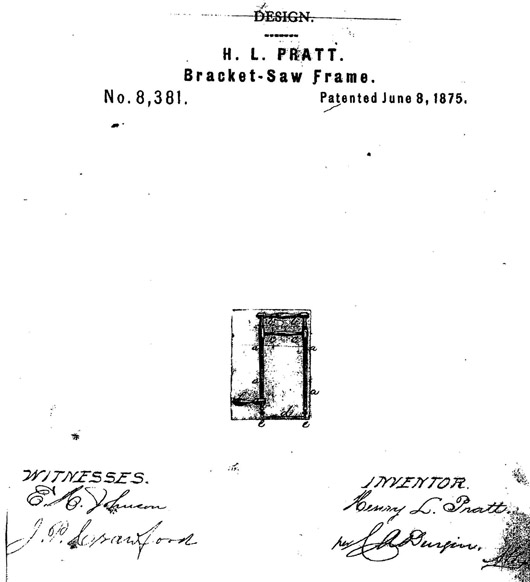

The nature of my design is fully represented in the accompanying illustration.

The frame consists of two parallel round rods, a a, connected together at one extremity by the two turned bars b and c, d is the saw-blade and e e the clamps at the extremities of the rods a a, for securing the saw in the frame, f is a handle secured on one of the rods a, near the clamp extremity.

What I claim is -
The design for a bracket-saw frame, as shown.

Inventor: HENRY L. PRATT
Witnesses: EDWARD P. STOUGHTON and E. H. JOHNSON.
