Millers Falls Company - Millers Falls and Greenfield, MA



  Mounted Breast Drill - Carpentry & Building, Vol.5, 1883

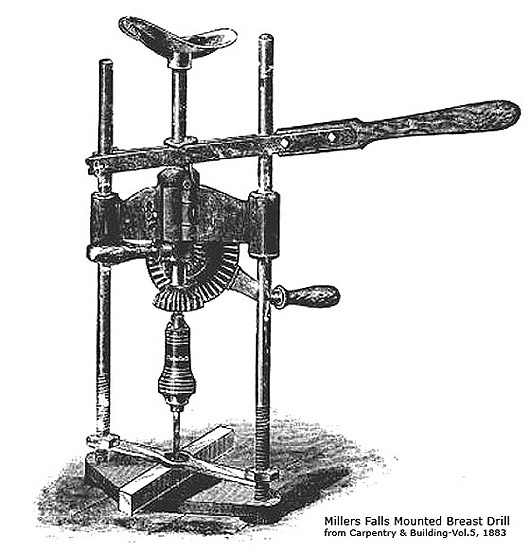

A novelty now being put upon the market by the Millers Falls Company, whose office is 74 Chambers street, this city (New York), is shown in the accompanying illustration.

A steel frame is provided, in which the No. 10 breast drill manufactured by this company may be used quite advantageously.

The engraving shows the arrangement of parts so thoroughly that very slight description is necessary. The upright rods of the frame are of 5/8-inch round steel, 16 inches high, and are placed 8 inches apart.

The drill is held true by the frame, and the work is held firmly in place by the clamp shown in the engraving. The lever-feed provided by this arrangement may be operated by hand, or a weight may be employed, as may be preferred.

The drill-stock is of 5/8-inch round steel, nickel-plated. The gears are cut, and are changeable from an even speed to one of three to one, as may be desired. The drill-stock can be put in or out of the frame by a half-turn of the thumb-nut, shown to the left in the engraving.

The advantage of an attachment of this kind for use in connection with a breast drill is obvious. Most of the work done by a tool of this character can be better performed with the drill mounted in the frame. When the breast-drill is used in the ordinary manner it very frequently requires heavy pressure, which is quite fatiguing to the workman. In the arrangement shown there is a leverage of five to one, which makes the feeding an easy matter.

When work is required that cannot be done in the frame, the tool can be taken out in a very small space of time, and used in the ordinary way.


I have been looking through the Millers Falls catalogs and could not find this device listed anywhere.  I suspect that the drill is one of the standard units produced by Millers Falls at that time, and only the mounting frame is a new design.  In any case, none of the catalogs that I have lists this unit.

If any of the readers has this contraption or knows more about it, please let me know.  Email.

Wiktor
November, 2010
